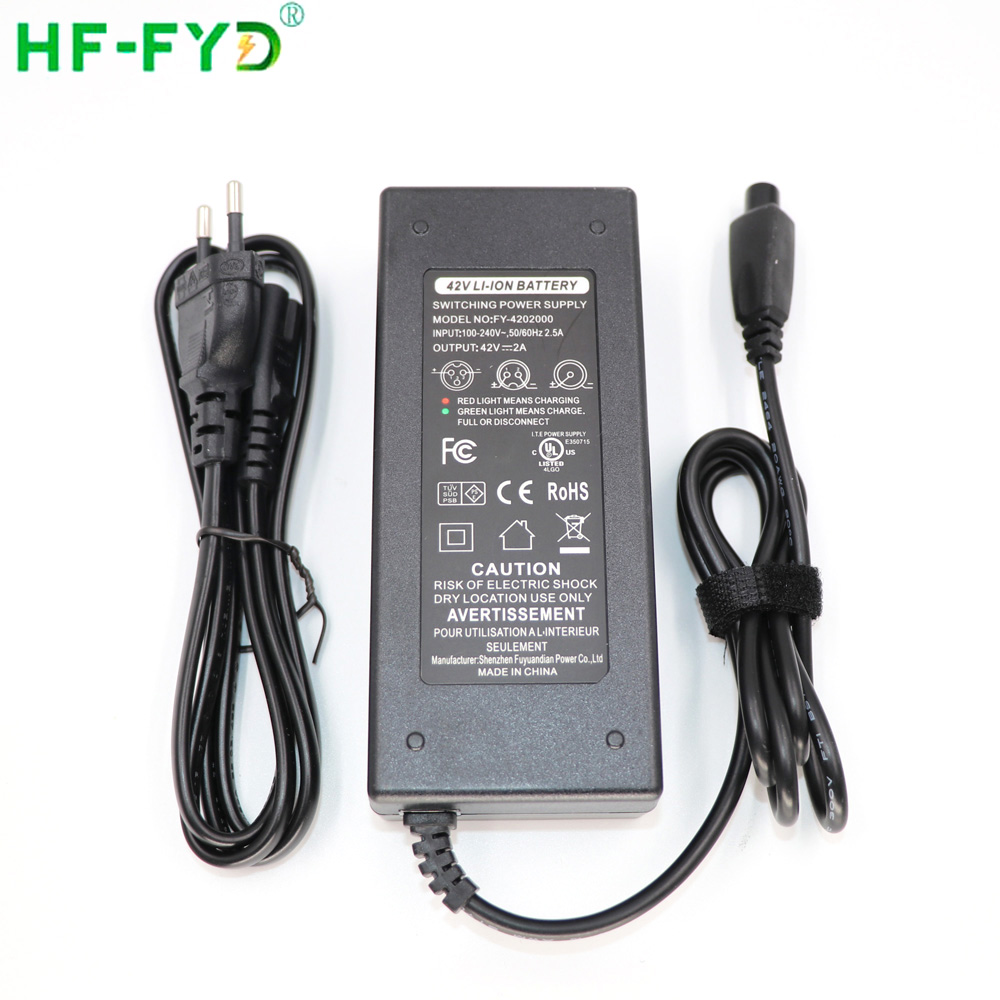

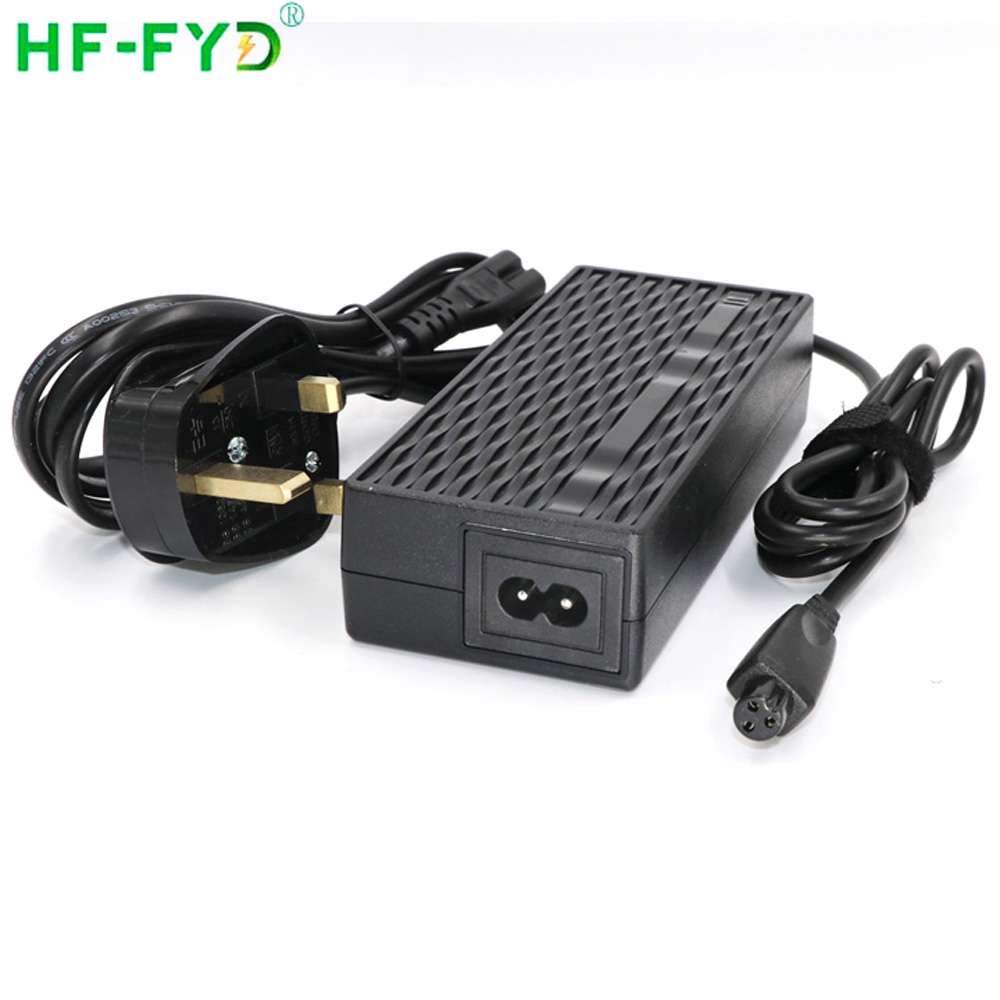

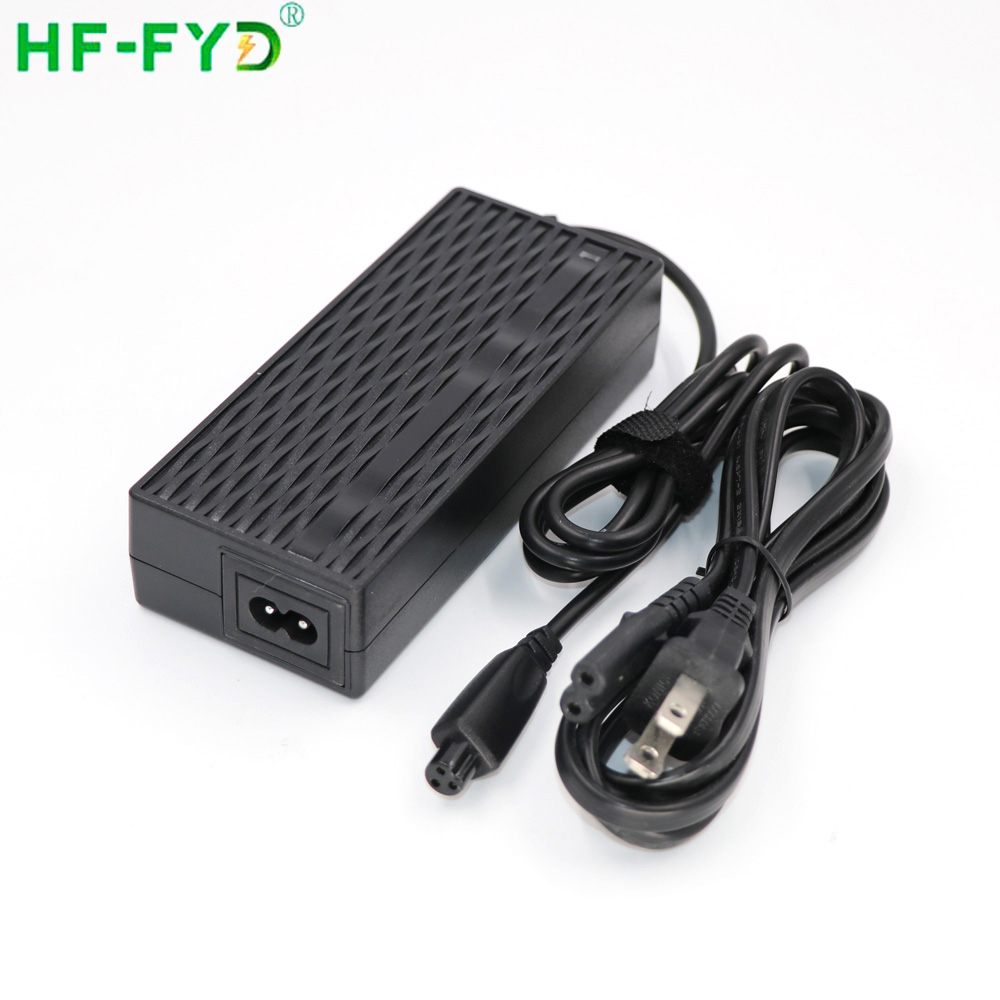

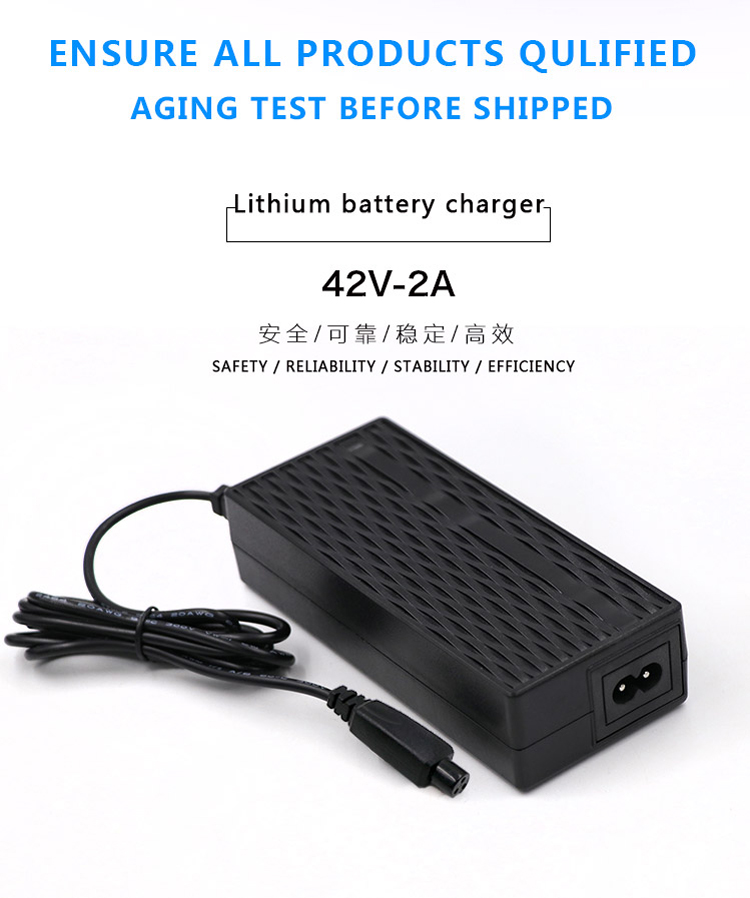

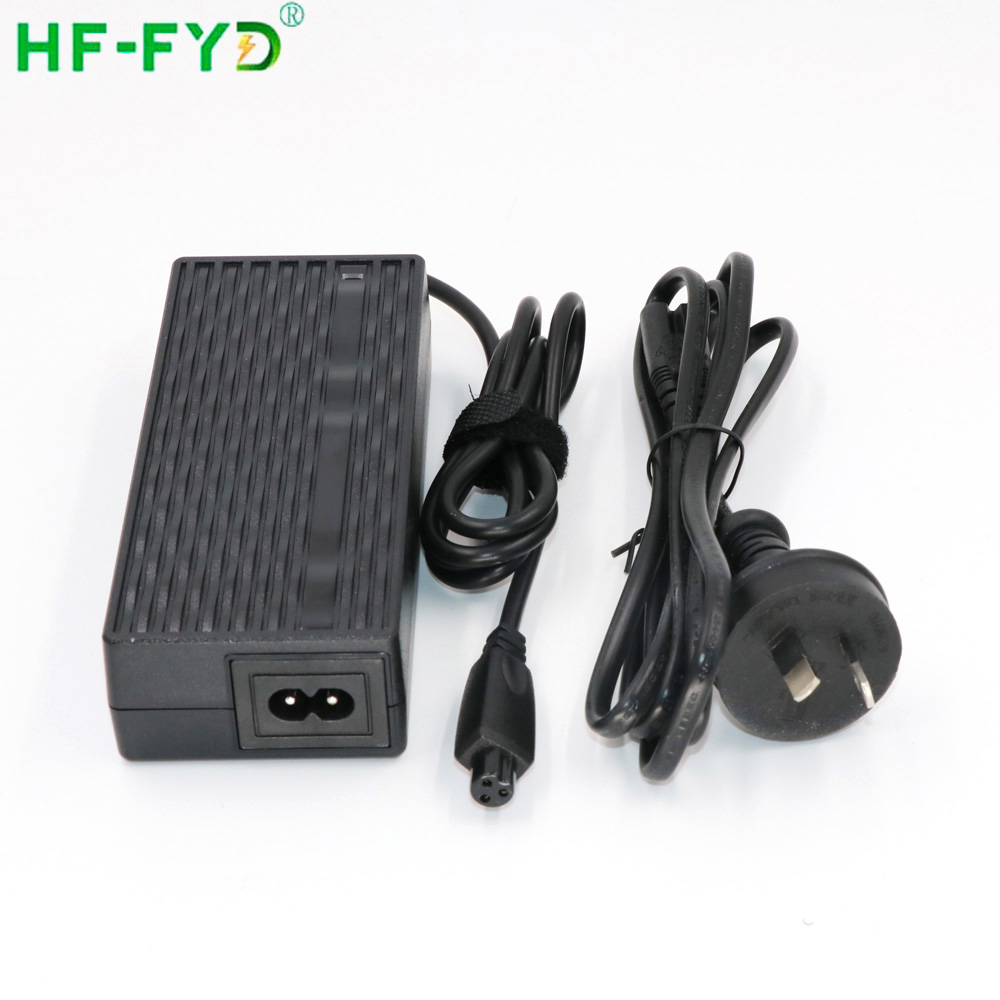

42V 2A平衡车充电器
| 输入电压 | 100-240V | 输出功率 | 84W |
| 输出电压 | 42V | DC线长 | 1M或根据客户要求 |

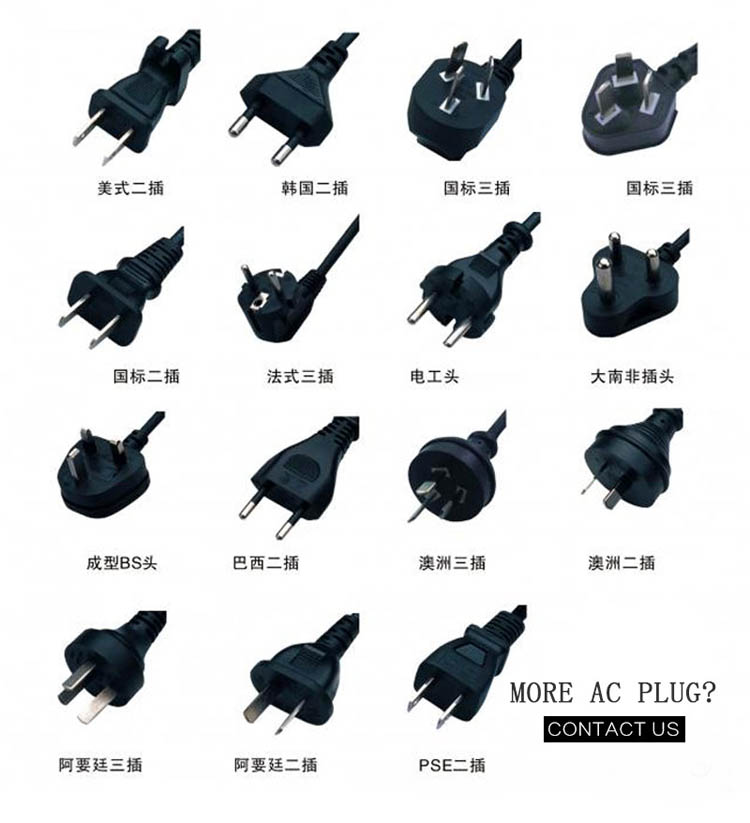

| 输出电流 | 2A | AC头 | 美规/欧规/澳规/英规/以色列规等 |

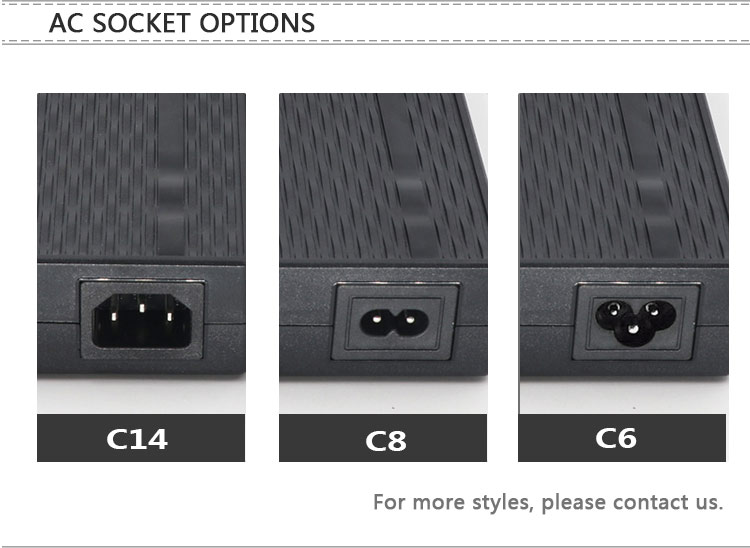

| AC端口 | 八字尾/品字尾/梅花尾 | DC接口 | 5.5*2.1/三芯航空头/根据客户要求 |
| AC线长 | 1.2M | 认证 | CE,FCC,CCC,ROHS,SAA,KC,KCC,UL,PSE,etc |
1.输入特性（INPUT CHARACTERISTICS）：
1.1输入电压范围：从100Vac到240Vac, 单相输入:
（The range of input voltage is from 100Vac to 240Vac single phase）:
Minimum/最小 | Normal/额定值 | Maximum/最大 | |
Input Voltage/输入电压 | 90Vac | 100Vac~240Vac | 264Vac |
Input Frequency/输入频率 | 47Hz | 60Hz/50Hz | 63Hz |
1.2输入电流(Input Current):
AC输入电压 AC input voltage | 空载输入电流 I input no load | 满载输入电流 Full load input current |
100V/60ZH | ≤42mA | ≤2.5A |
230V/50ZH | ≤68mA | ≤2.5A |
2、输出特性（OUTPUT CHARACTERISTICS）：
2.1额定电流 CV模式（Rated Current CV mode）：
额定输出电压 Rating Output Voltage | 空载输出电压范围 No load Voltage Range | 输出额定电流 Output rated current |
42V | 40.7V—43.2V | 2.0A |
输出恒流电压范围 Output constant current voltage range | 输出恒流电流范围 Output constant current range | 测试模式 Test pattern |
30V—41V | 1.8A—2.2A | CV模式/CV mode |

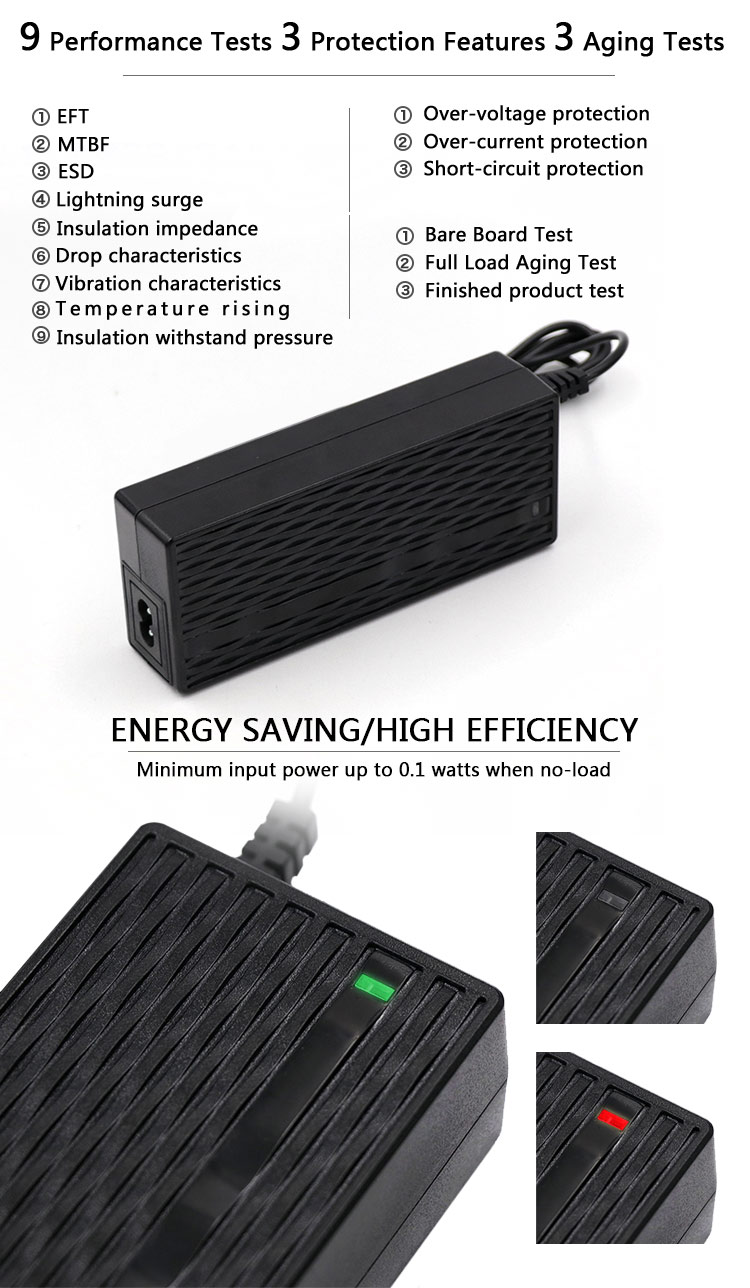

2.2指示灯状态(Indicator light state):
充满/待机状态 Full / standby | 充电状态 Charging state | 充满转灯电流 Full of light current |
绿色/green | 红色/gules | ≤350mA |
3、保护功能(PROTECTION REQUIREMENT):
3.1短路电路保护:
Short Circuit Protection:
短路保护功率值：≤3W，该电源供给电器在短路解除时,能恢复正常工作.
Short circuit protection: power value is less than or equal to ≤3W, the power supply in the electrical short circuit is removed, can resume normal work.
3.2过流保护(Over current Protection)：
过流保护电流值：<2.3 A，过流故障排除后，电源将自动恢复正常工作.
Over current protection current value: <2.3A , after overcurrent failure is excluded, the power will automatically resume normal work.
3.3高压(high pressure)：
项目Item | 电压(V) | 电流/时间 | 备注Remark |
输入-输出 Primary to Secondary | 3000Vac | ＜5mA / 60S | 样品/sample |
3000Vac | ＜5mA / 3S | 批量生产/Volume production |
