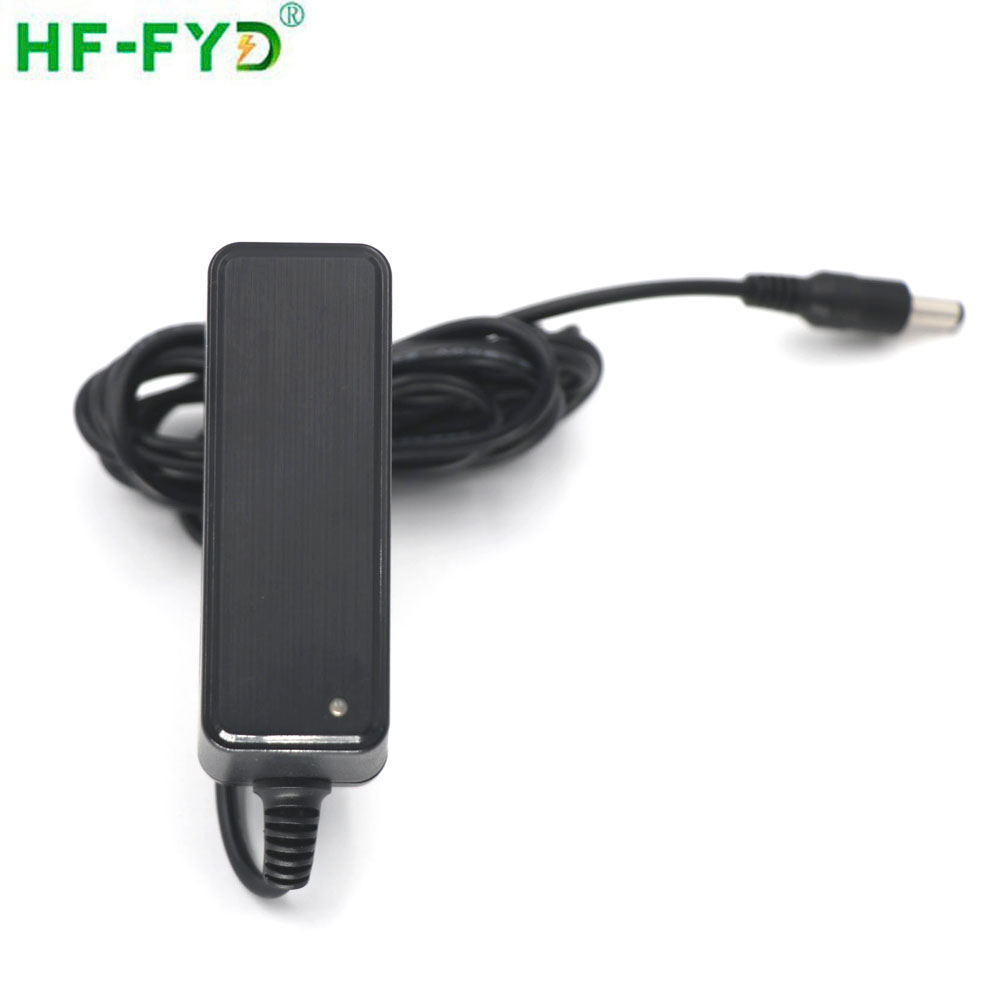

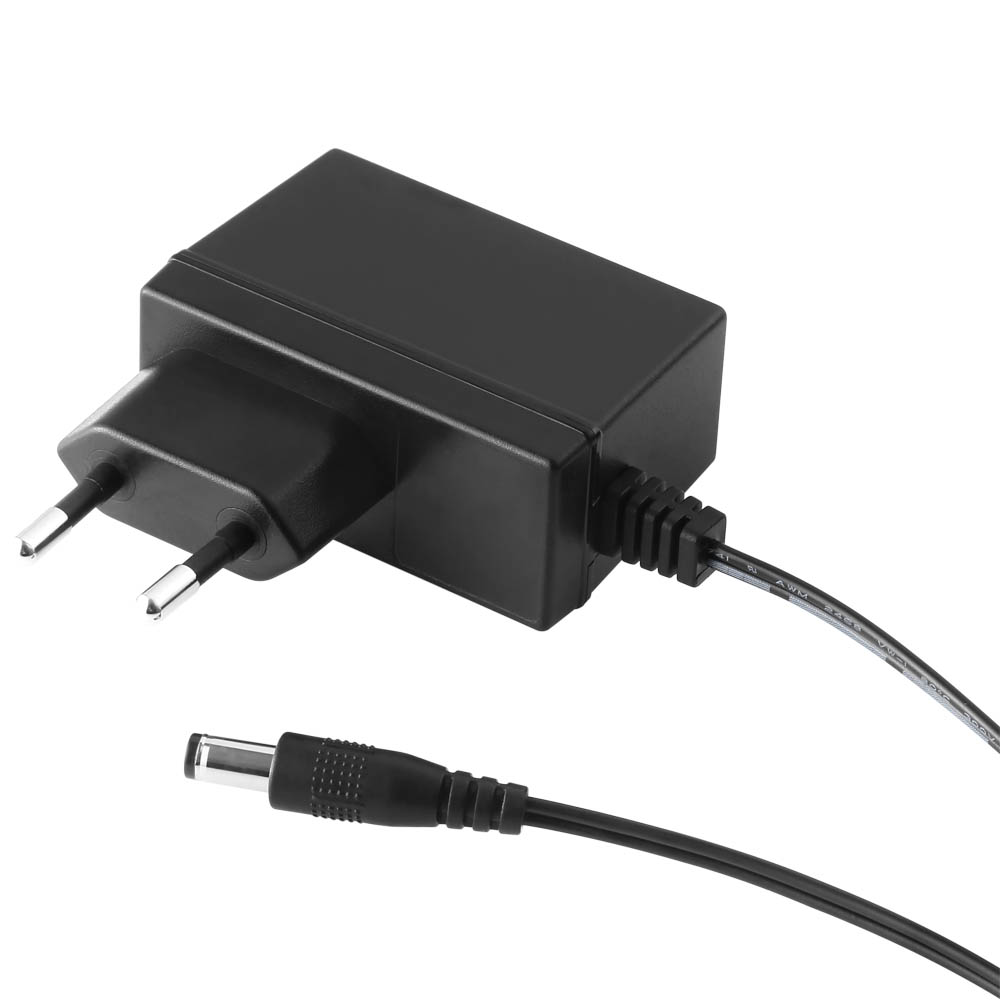

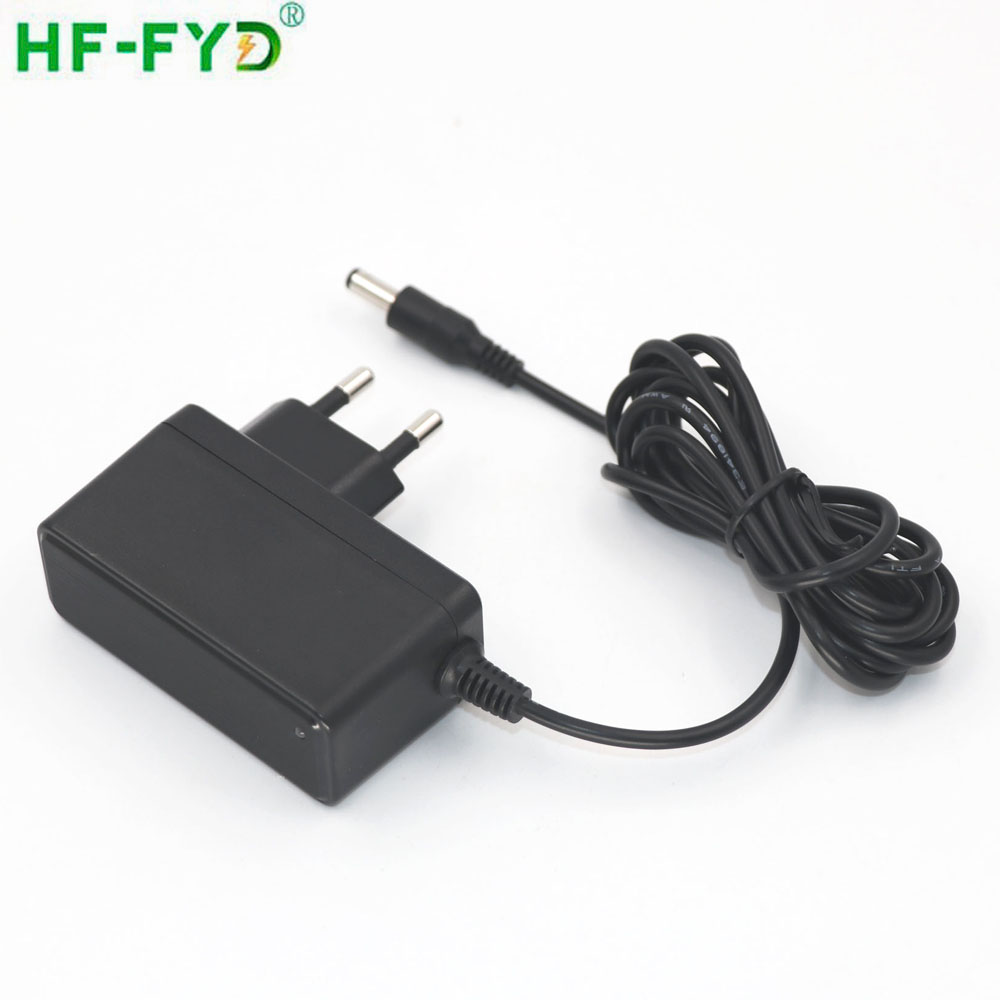

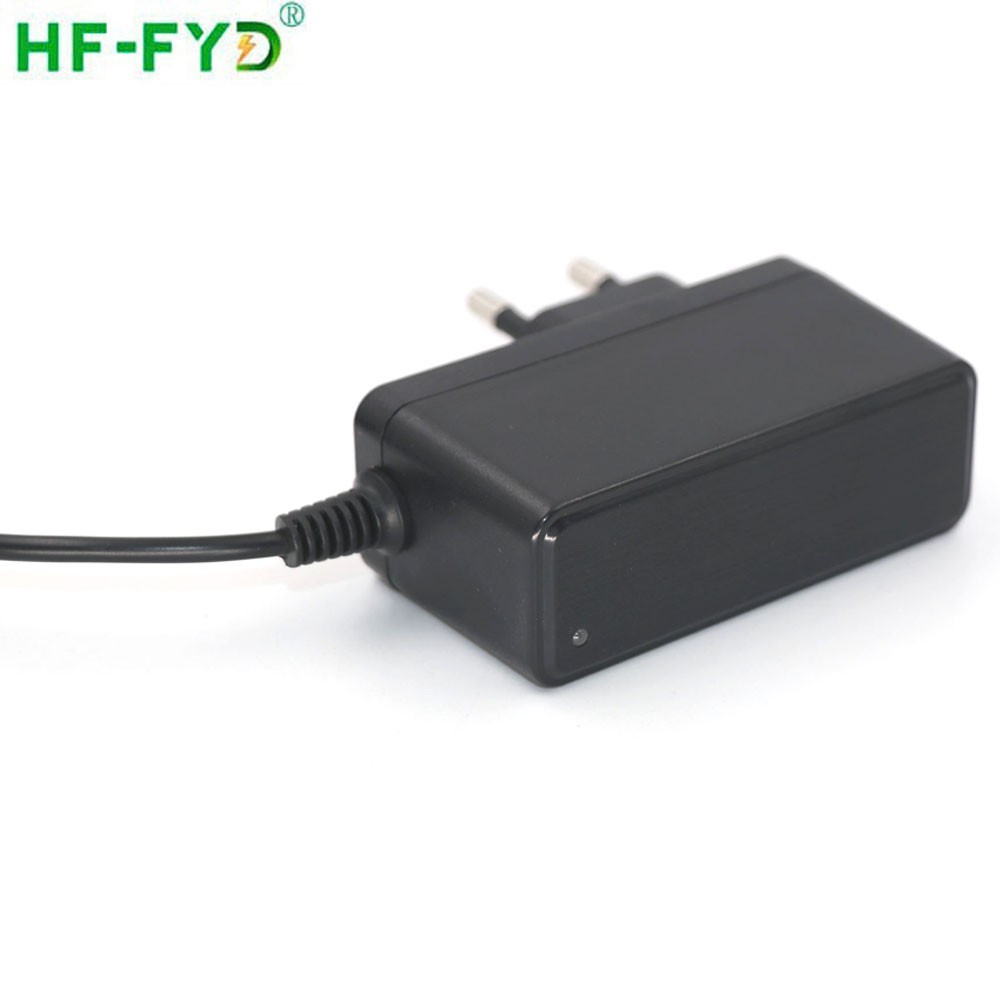

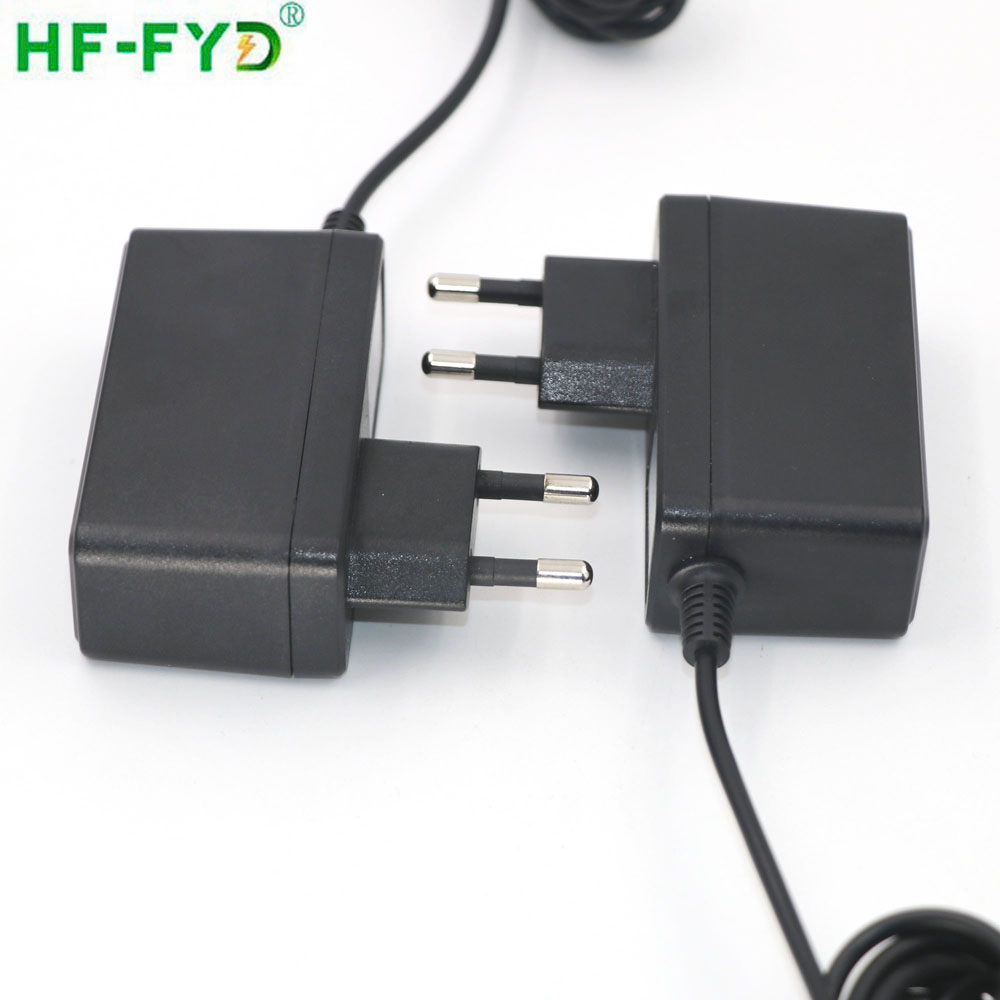

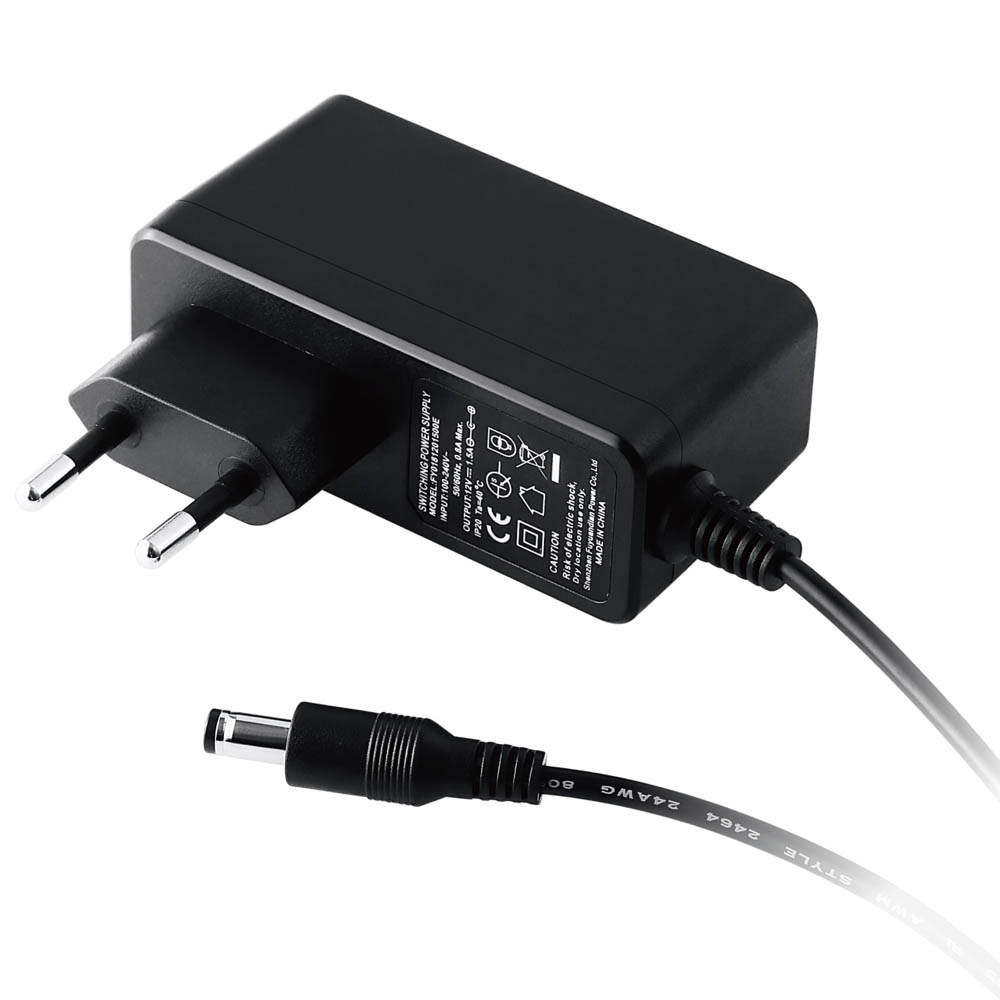

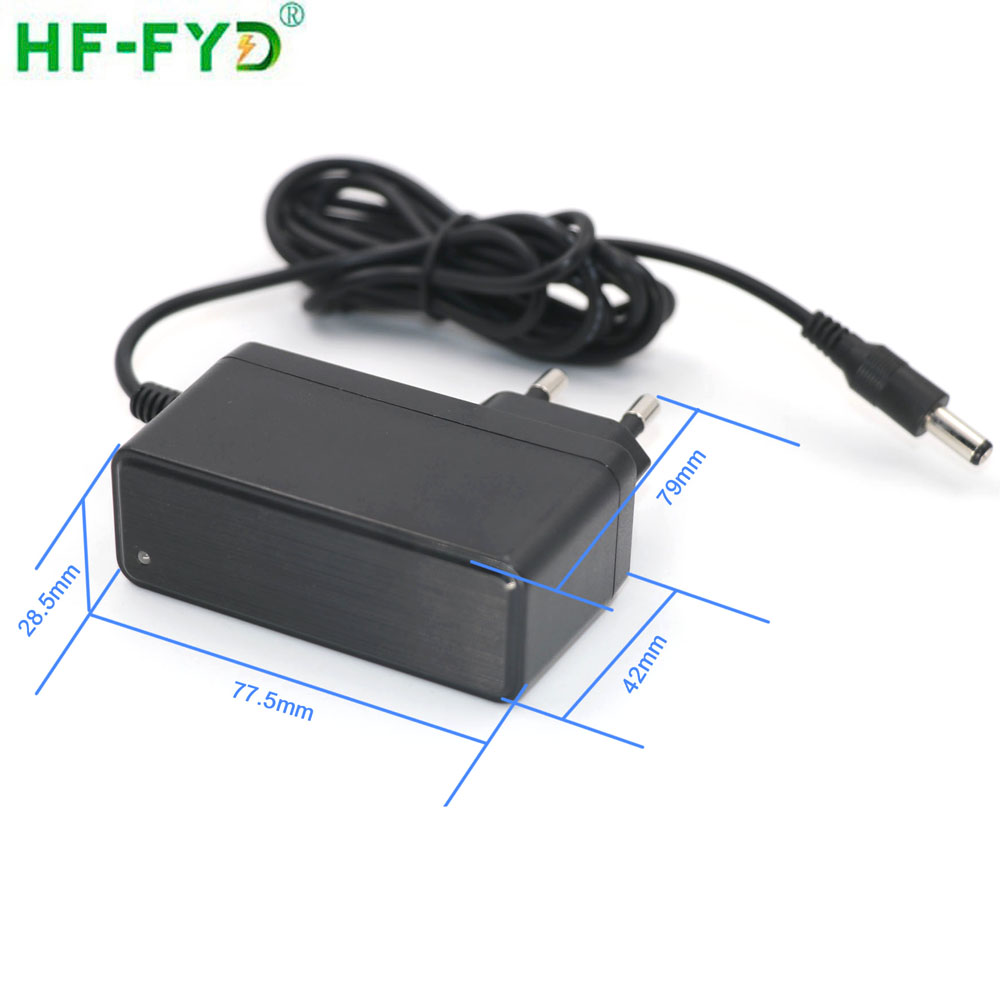

16.8V 2A 充电器
1.参数信息
| 输入电压 | 100-240V | 输出功率 | 33.6W |
| 输出电压 | 16.8V | DC线长 | 1M或根据客户要求 |
| 输出电流 | 2A | AC头 | 美规/欧规/澳规/英规等 |
| AC端口 | 八字尾/品字尾/梅花尾/无 | DC接口 | 5.5*2.1/三芯航空头/根据客户要求 |
| AC线长 | 1.2M/无 | 认证 | CE,FCC,CCC,ROHS,SAA,KC,KCC,UL,PSE,etc |
2、输入特性（INPUT CHARACTERISTICS）：
2.1输入电压范围：从100Vac到240Vac, 单相输入:
（The range of input voltage is from 100Vac to 240Vac single phase）:
Minimum/最小 | Normal/额定值 | Maximum/最大 | |
Input Voltage/输入电压 | 90Vac | 100Vac~240Vac | 264Vac |
Input Frequency/输入频率 | 47Hz | 60Hz/50Hz | 63Hz |
2.2输入电流(Input Current):
AC输入电压 AC input voltage | 空载输入电流 I input no load | 满载输入电流 Full load input current |
100V/60ZH | ≤12mA | ≤1.8A |
230V/50ZH | ≤30mA | ≤1.8A |
3、输出特性（OUTPUT CHARACTERISTICS）：
3.1额定电流 CV模式（Rated Current CV mode）：
额定输出电压 Rating Output Voltage | 空载输出电压范围 No load Voltage Range | 输出额定电流 Output rated current |
16.8V | 16.3V—17.3V | 2.0A |
输出恒流电压范围 Output constant current voltage range | 输出恒流电流范围 Output constant current range | 测试模式 Test pattern |
11V—15.8V | 1.8A—2.2A | CV模式/CV mode |
3.2指示灯状态(Indicator light state):
充满/待机状态 Full / standby | 充电状态 Charging state | 转灯电流 Turn lamp current |
绿色/green | 红色/gules | ≤350mA |
4、保护功能(PROTECTION REQUIREMENT):
4.1短路电路保护:
Short Circuit Protection:
短路保护功率值：≤3W，该电源供给电器在短路解除时,能恢复正常工作.
Short circuit protection: power value is less than or equal to 3W, the power supply in the electrical short circuit is removed, can resume normal work.
4.2过流保护(Over current Protection)：
过流保护电流值：<2.3 A，过流故障排除后，电源将自动恢复正常工作.
Over current protection current value: <2.3A , after overcurrent failure is excluded, the power will automatically resume normal work.
